BlueMaster Standard 5000 with TMS, Insulation and Coil + RADAR

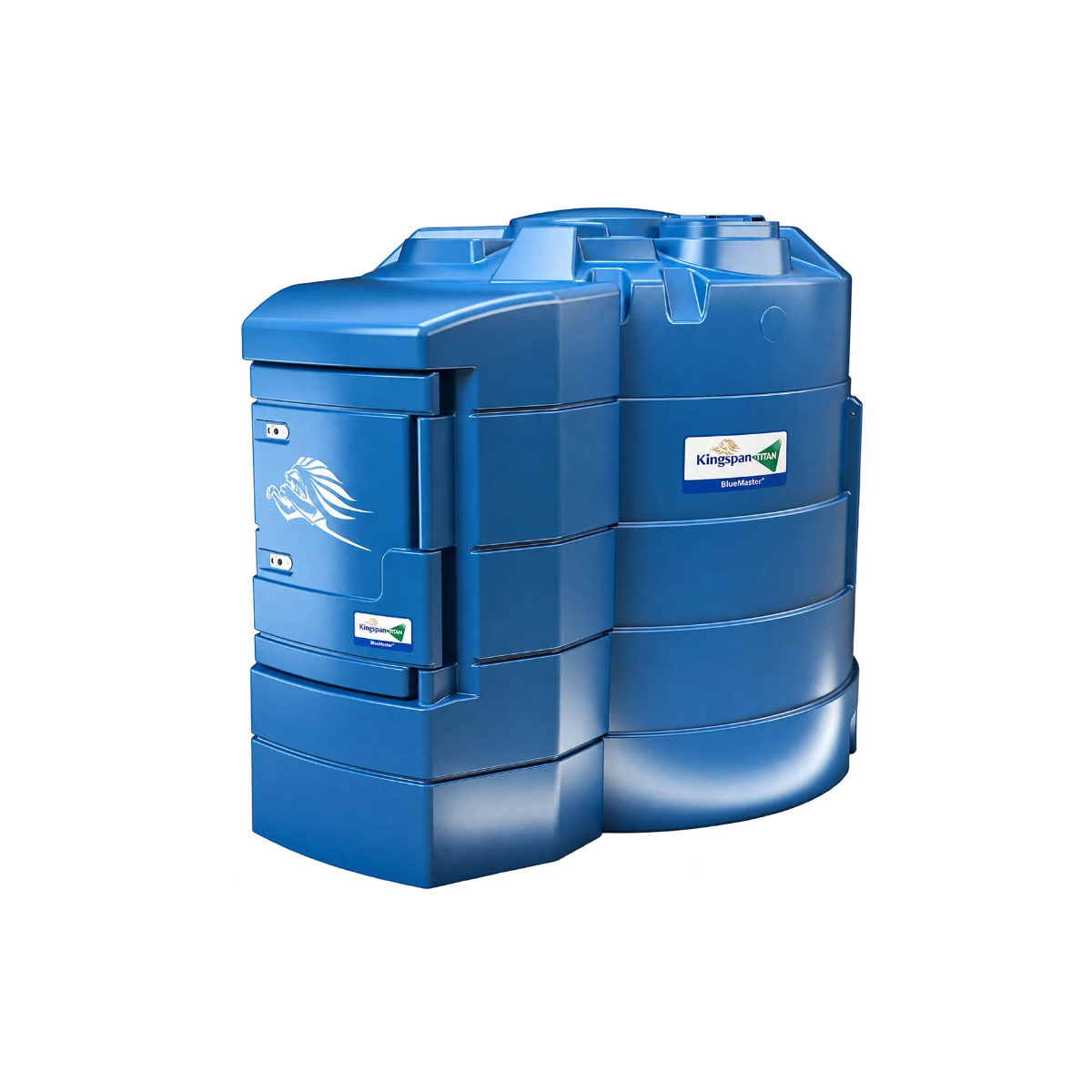

The BlueMaster Standard 5000 is a professional double-skinned tank designed for safe and efficient AdBlue® storage and dispensing. With a 5,000 L capacity, integrated TMS management system, insulation, heating and ventilation, it is suitable for businesses with regular or high-volume AdBlue® consumption.

The integrated TMS management system provides convenient control of the tank’s key functions, including heating and ventilation, while the digital flowmeter and level monitoring system allow accurate monitoring of AdBlue® dispensing and remaining stock.

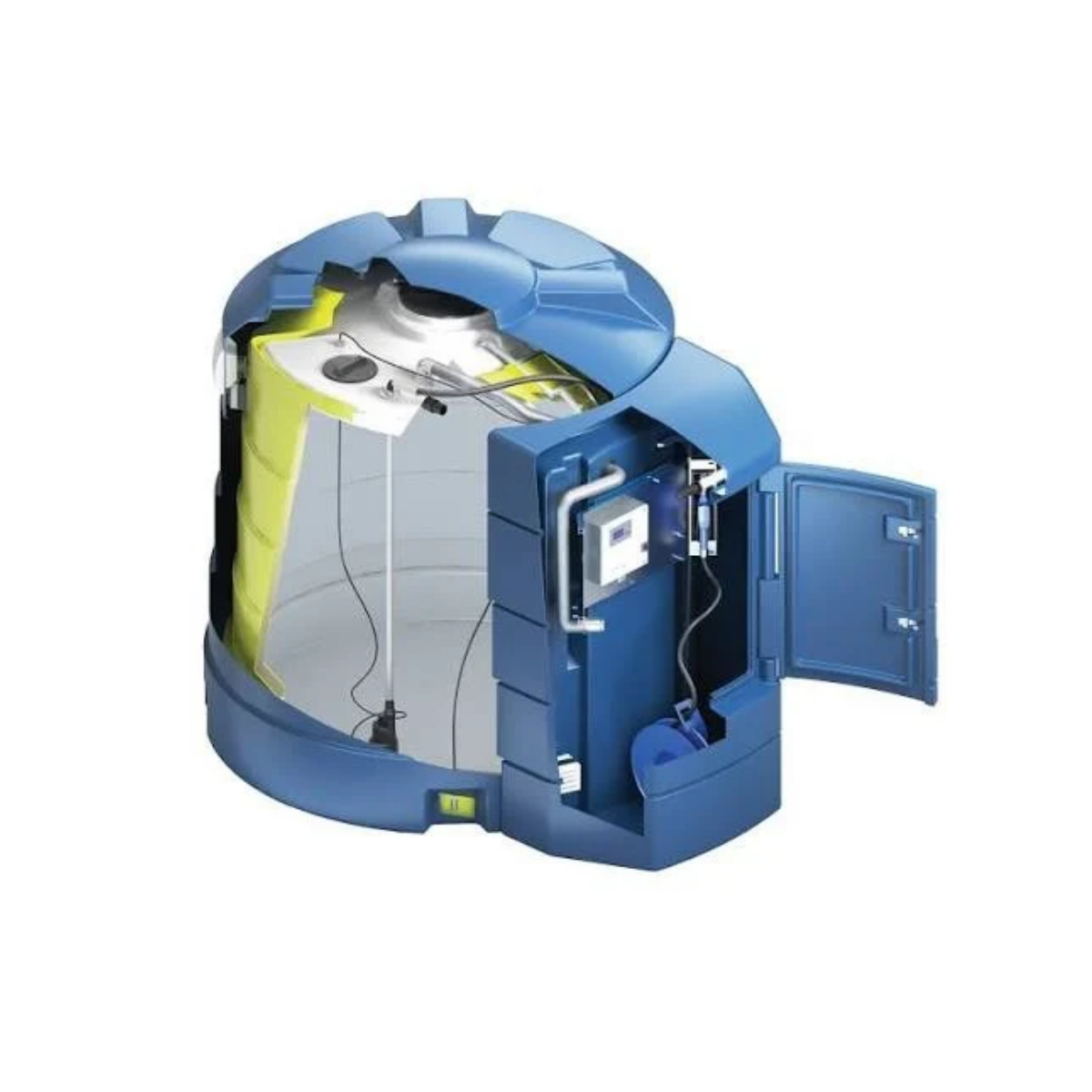

The tank is equipped with a 40 L/min submersible pump, automatic nozzle, 6 m dispensing hose with automatic hose reel and a stainless-steel filling line with a 2" dry coupling connection. A spacious dispensing cabinet with integrated LED lighting ensures convenient everyday operation.

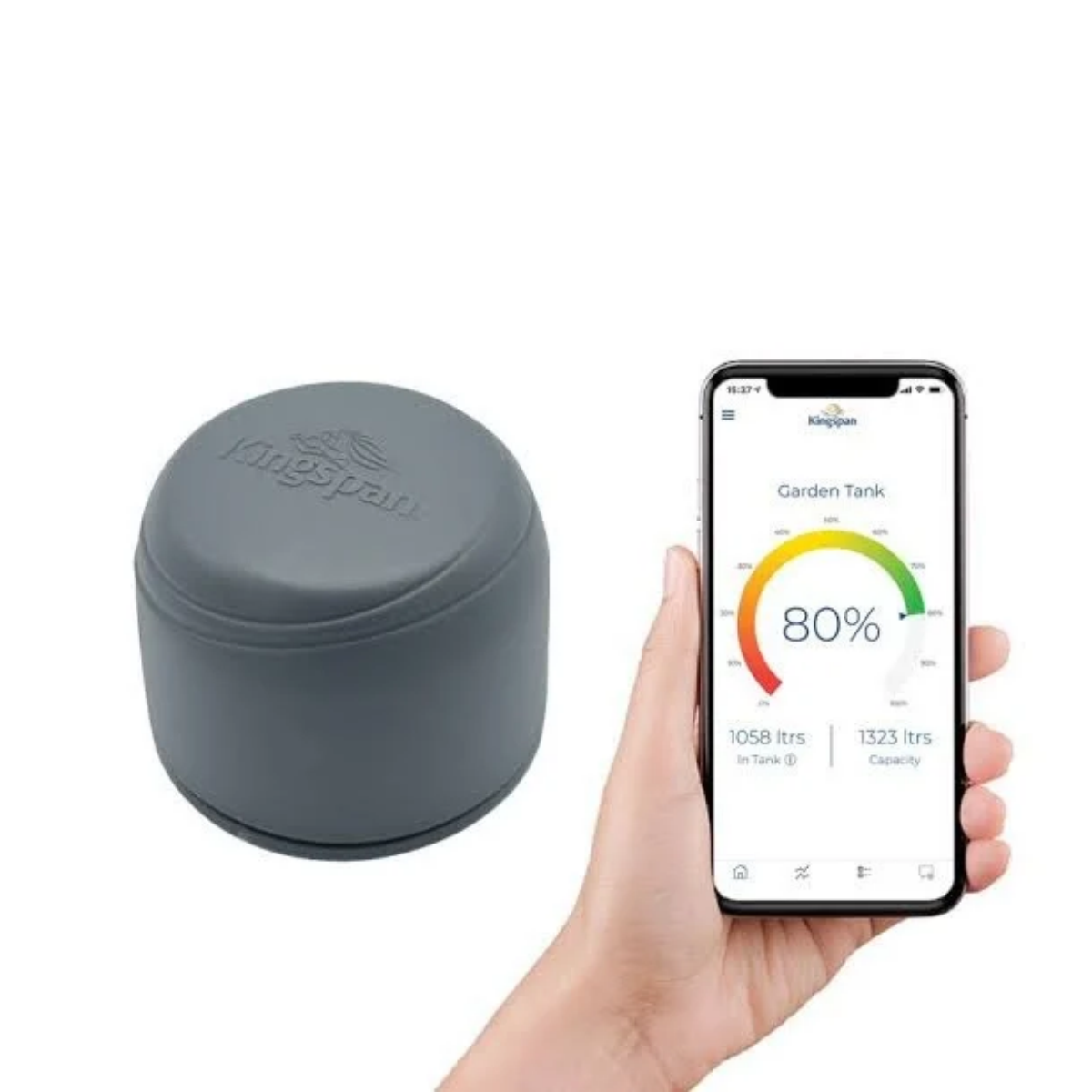

For additional control, this configuration includes a Watchman Radar V2 level sensor for remote tank level monitoring. Radar technology provides non-contact liquid level measurement, while tank level information can be accessed remotely through the Kingspan Connect platform.

Technical information

• Capacity: 5,000 L
• Tank type: Double-skinned
• Application: AdBlue® storage and dispensing
• Management system: TMS with digital display
• Pump: 40 L/min submersible pump
• Flowmeter: Digital, with pulse output
• Level monitoring: Pressure probe + Watchman Radar V2
• Hose: 6 m
• Hose reel: Automatic
• Nozzle: Automatic
• Pump activation: Automatic ON/OFF via nozzle holder
• Filling connection: 2" dry coupling
• Filling line: Stainless steel, connection at working level
• Heating: Yes
• Ventilation: Yes
• Inner tank insulation: Yes
• Dispensing cabinet: Large housing with LED lighting
• Remote level monitoring: Watchman Radar V2
• Radar measurement: Non-contact
• Radar accuracy: ±1 cm
• Radar protection: IP67
• Radar operating temperature: −25 °C to +60 °C
