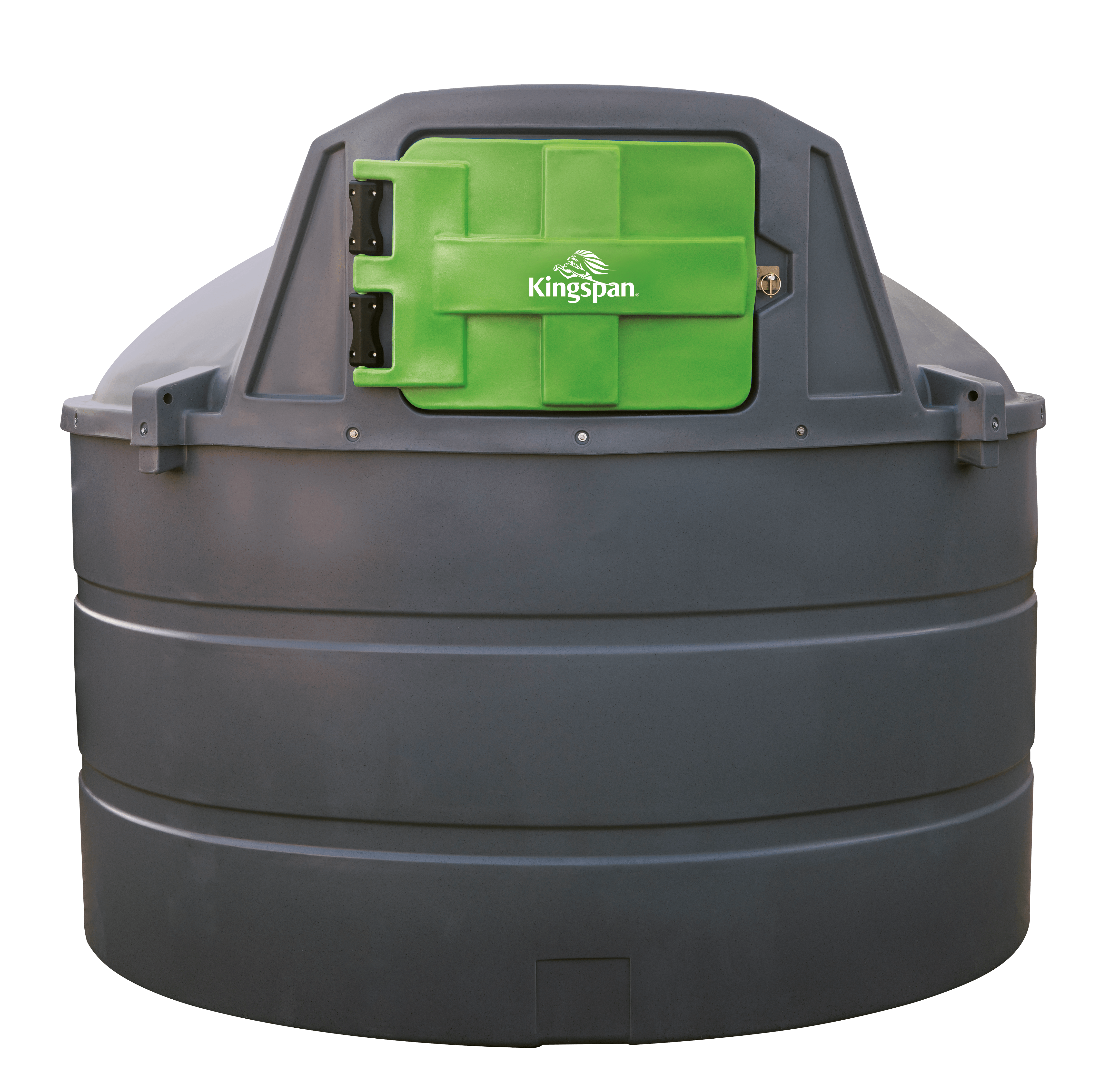

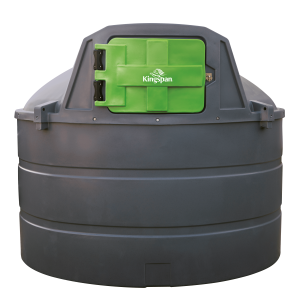

FuelMaster 5000 TITAN, diesel storage and dispensing tank

The FuelMaster 5000 TITAN is a double-walled diesel fuel storage and dispensing tank with a nominal capacity of 5,000 litres, designed for the storage and controlled dispensing of diesel fuel. The double-walled construction provides an additional containment layer around the inner fuel tank, while the dispensing equipment is integrated into a dedicated lockable equipment compartment.

The FuelMaster 5000 TITAN is equipped with an electric diesel pump with a stated maximum delivery rate of 79 litres per minute. The dispensing system includes a digital litre meter with a permissible measurement error of ±0.5%, allowing the quantity of dispensed diesel fuel to be monitored during operation.

Fuel is dispensed through a flexible 3/4-inch hose with a length of 8 metres and an A60 automatic dispensing nozzle. The automatic nozzle is designed for controlled diesel dispensing and provides convenient refuelling of vehicles, machinery and other diesel-powered equipment positioned within reach of the dispensing hose.

The tank is equipped with a clock-type fuel level indicator for monitoring the amount of fuel stored inside the tank. The dispensing equipment is located inside a lockable equipment compartment, protecting the components and restricting access to the dispensing system when the tank is not in use.

The FuelMaster 5000 TITAN is equipped with a filter for separating mechanical contaminants and water from the diesel fuel. The tank specification also includes earthing and ventilation.

The FuelMaster 5000 TITAN has a nominal capacity of 5,000 litres. According to the specified product configuration, the tank has a diameter of approximately 2.46 metres, a height of approximately 2.05 metres and an empty weight of approximately 250 kg.

The tank warranty is stated as 10 years, while the warranty for the dispensing equipment is 1 year.

Technical Parameters: nominal capacity: 5,000 L; construction: double-walled; intended medium: diesel fuel; electric pump: maximum stated delivery rate 79 L/min; digital litre meter: permissible measurement error ±0.5%; dispensing hose: flexible 3/4-inch hose, 8 m; dispensing nozzle: A60 automatic nozzle; fuel level monitoring: clock-type level indicator; equipment compartment: lockable; filtration: filter for separating mechanical contaminants and water; additional equipment: earthing and ventilation; diameter: approximately 2.46 m; height: approximately 2.05 m; empty weight: approximately 250 kg; tank warranty: 10 years; equipment warranty: 1 year.
