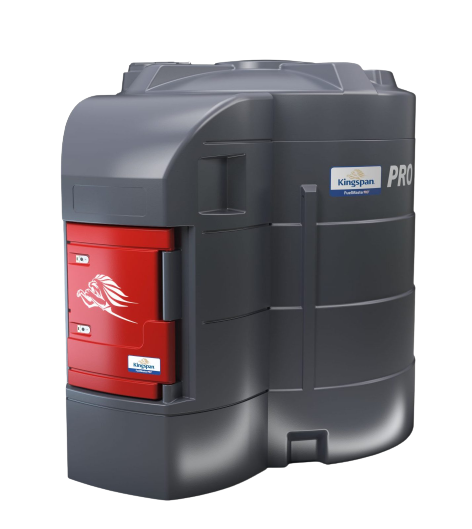

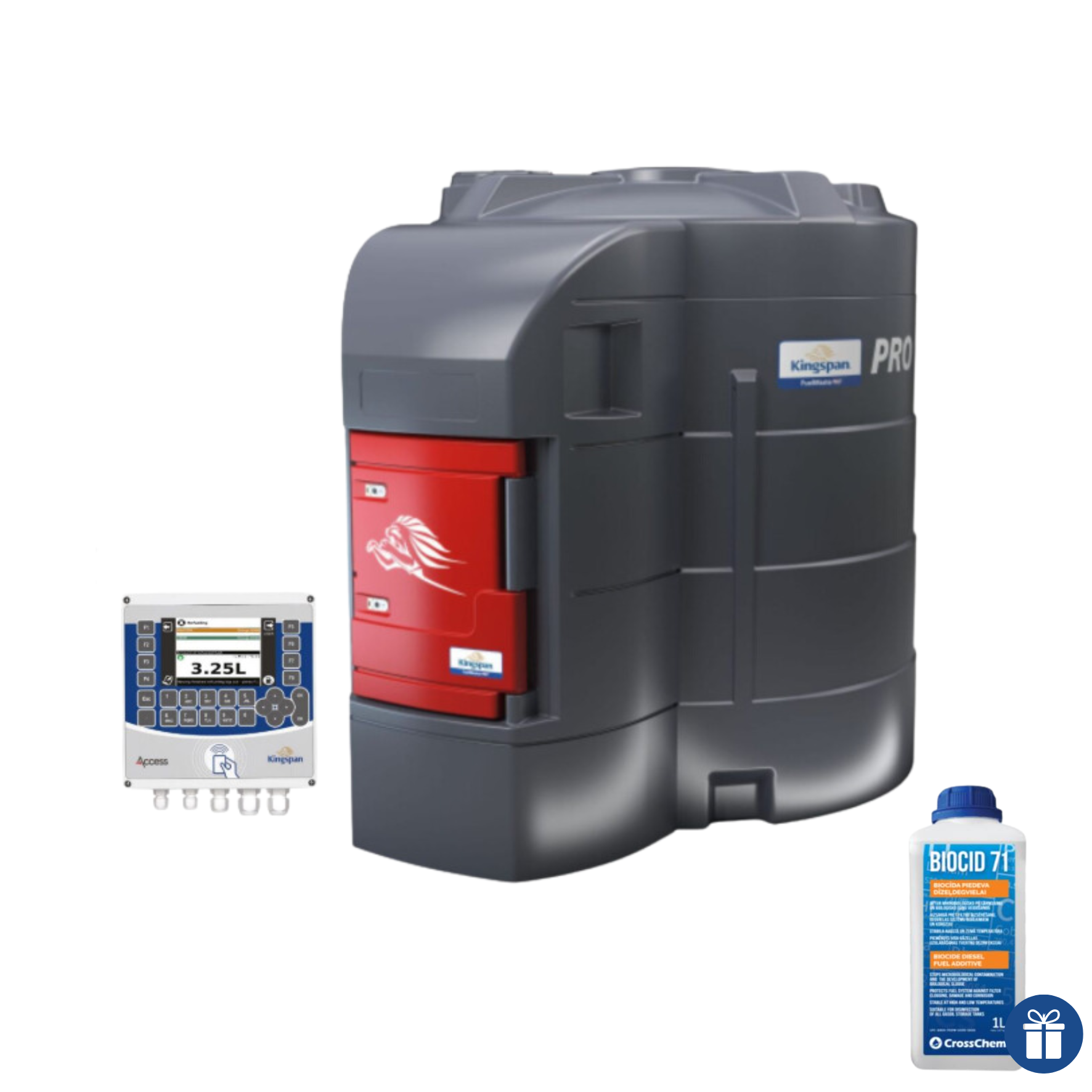

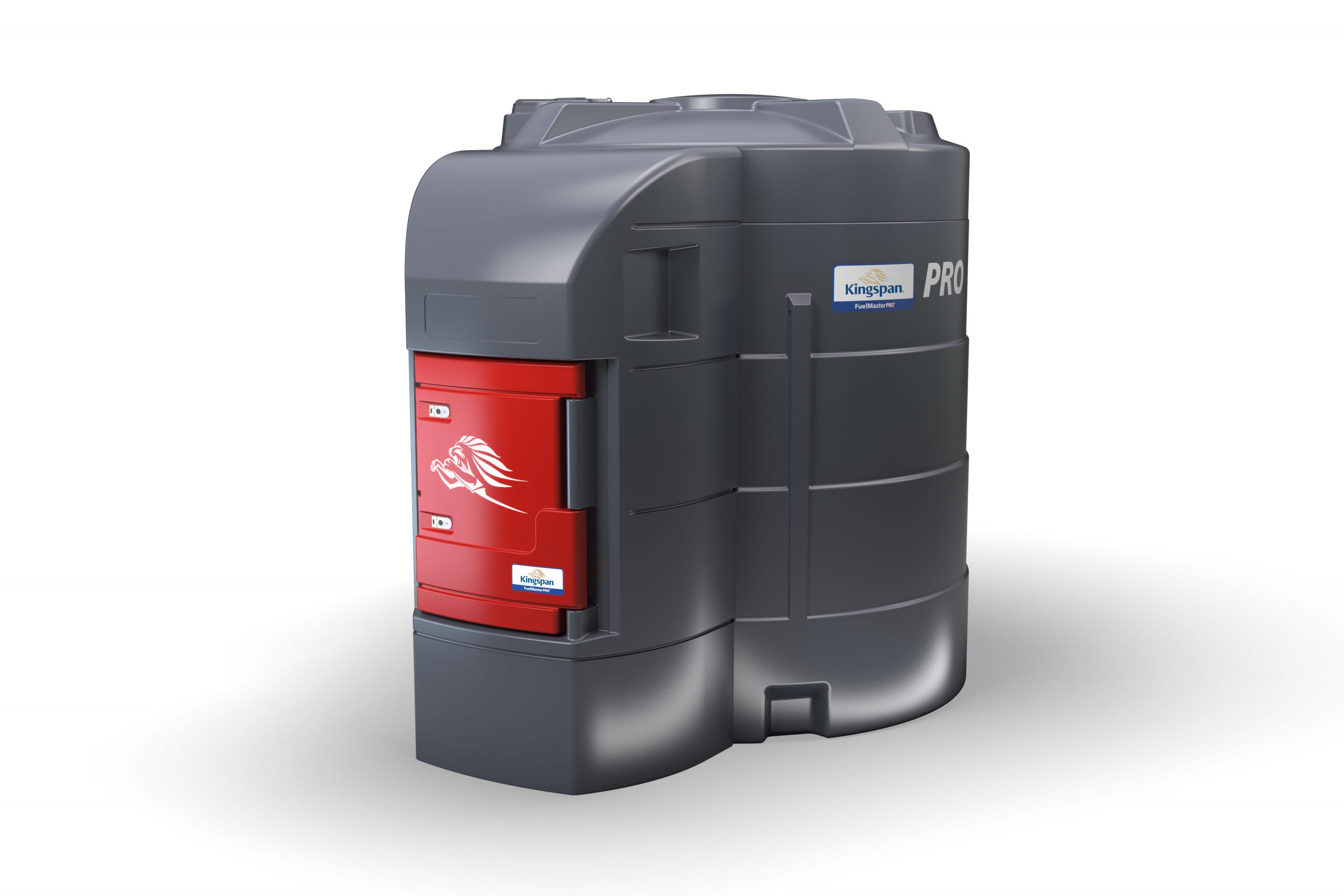

Kingspan "FuelMaster" PRO 9000L Diesel Storage and Dispensing Tank

Equipment:
– Volume 9000 liters,
– Electric pump 79 l / min, PIUSI Panther 72 230V, 50Hz,
– Digital liter counter K600 B / 3 PIUSI, measurement accuracy +/- 0.5%,
– Flexible distribution hose 3/4 “x 6m,
– Automatic dispensing gun A60 PIUSI + handgun holder,

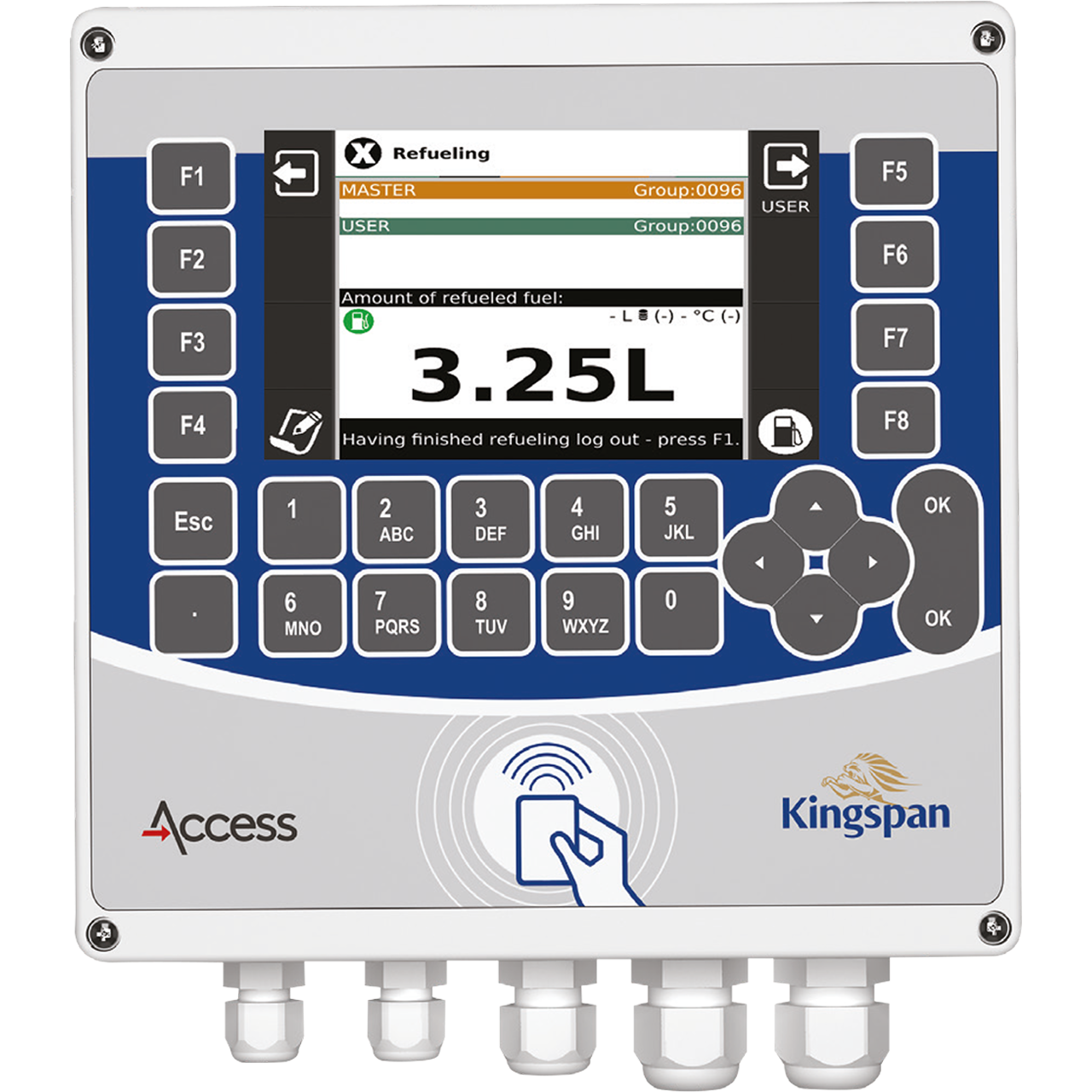

– Kingspan Access XTrack data accounting system,
– User identification with RFID cards,
– Data processing in WEB or WiFi environment,
– Keller pressure probe with temperature sensor

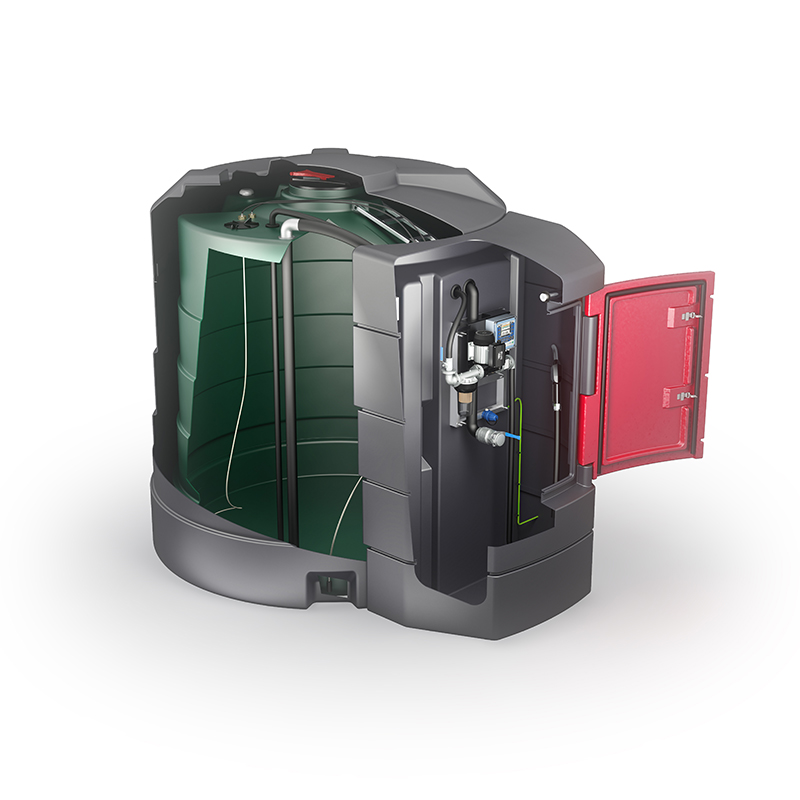

– Distribution equipment compartment
– Lockable equipment compartment with LED lighting,
– Ball valve with SpillSTOP- overflow protection system,
– Keller pressure probe with temperature sensor
– Filter separating the mechanical and water parts,
– Filling the tank via a 2 “connection in the equipment compartment,
– Earthing port on the outside of the tank,
– Ventilation valve for inner tank,
– Mechanical overflow
– GOK GWD electronic overflow protection,
– Non-suction residue approx. 3%, for pump safety (does not allow sludge to be absorbed, if any)

Length – 3.25m, Width – 2.45m, Height – 2.95m, Weight – 540 kg.

Warranty – 10 years for tank, 1 year for equipment.

Fuel tanks over 1000L must be registered in the SRS register,
Fuel tanks over 2500L must be registered in the BIR (Register of Dangerous Equipment)
